USB 3.2 Gen 1 100m Extender over CAT6a｜Dual USB-C Host｜Dual HDMI 4K60 DisplayLink｜RS-232｜FSYNC GPIO｜24V PoC

USB 3.2 Gen 1 5Gbps100m CAT6aDual HDMI 4K60RS-232 Pass-ThroughFSYNC GPIO24V PoC

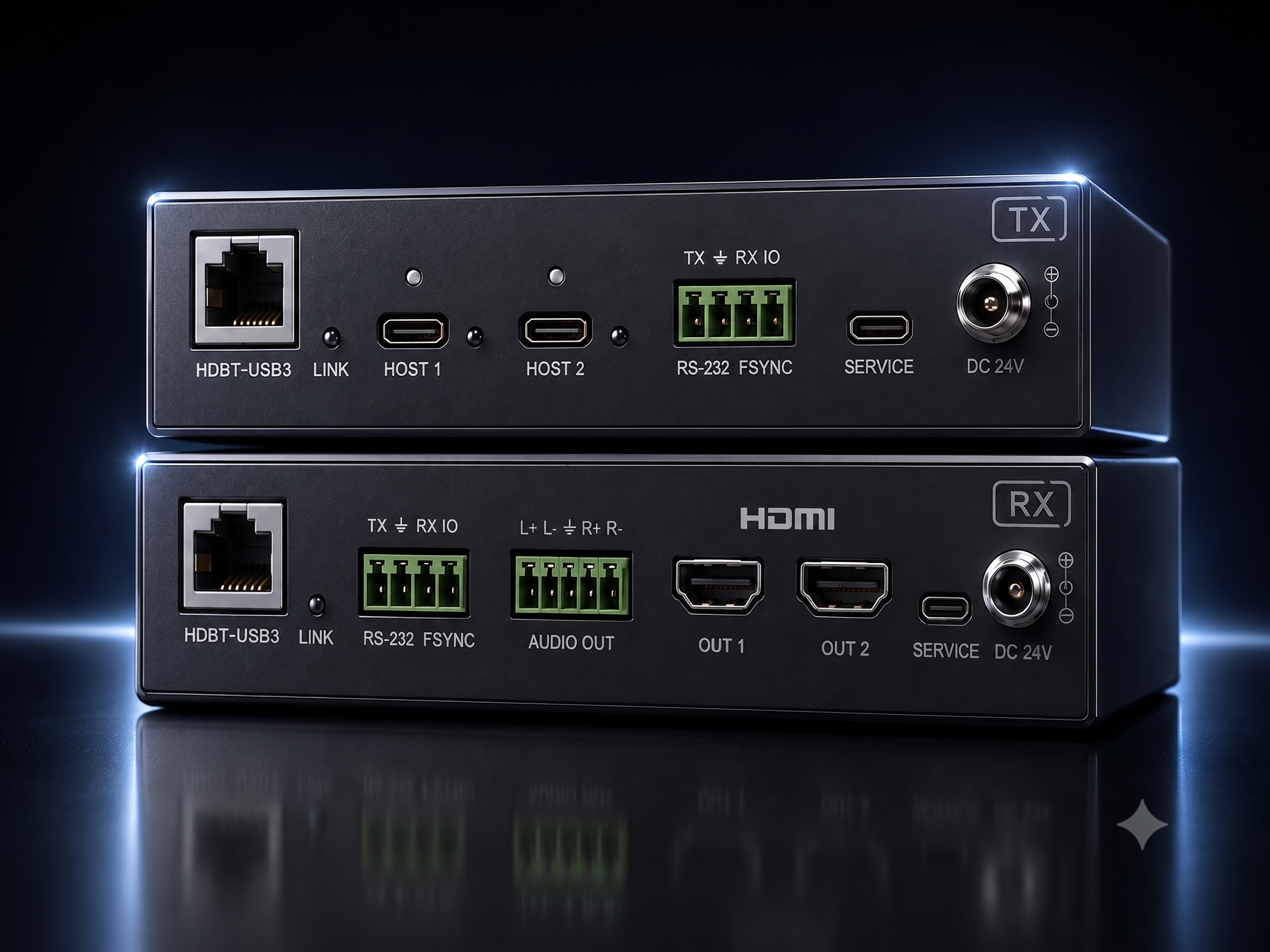

Professional USB 3.2 + Dual Display Extender UK3000_W professional product image

Item	Catalog Summary
Model	UK3000_W
Product Type	USB 3.2 Gen 1 extender set with dual USB-C host inputs, dual HDMI DisplayLink outputs and 100m CAT6a extension
Positioning	Professional USB-C, USB 3.2 and dual-display extension solution for AV/IT, meeting rooms, classrooms, control desks, medical imaging and industrial vision systems.

01

Catalog Contents

02Product Overview 03Key Features 04Technical Specifications 05Applications & System Layout 06Package Contents 07Contact Information

02

Product Overview

UK3000_W is a professional USB 3.2 Gen 1 extender system designed for long-distance USB-C, high-speed USB device and dual-display deployment. It extends USB 3.2 Gen 1 signals up to 100m / 328ft through a single CAT6a F/FTP cable and supports a transmission rate up to 5Gbps.

The system includes a transmitter and receiver. The transmitter provides dual USB-C host inputs, while the receiver provides USB device ports, dual HDMI outputs, audio output and professional control interfaces. Built-in DisplayLink technology enables the connected Windows or macOS computer to recognize TV 1 and TV 2 as two independent HDMI displays for extended desktop workflows, or as duplicated displays through the computer display settings.

Core Functions	USB 3.2 extension, dual USB-C host switching, dual HDMI 4K60 DisplayLink output, audio de-embedding, RS-232 pass-through, FSYNC GPIO and 24V PoC
USB Compatibility	USB 3.2 Gen 1, backward compatible with USB 2.0 and USB 1.1 devices
Typical Applications	Meeting rooms, BYOD spaces, USB camera extension, classrooms, industrial vision, control desks, medical imaging and AV racks
Installation	USB extension is designed for professional deployment; DisplayLink driver installation is required for independent dual HDMI output.

03

Key Features

USB 3.2 Gen 1 up to 5Gbps

High-speed USB data transmission for USB cameras, storage devices, capture devices and professional peripherals.

100m CAT6a Extension

Extends USB, control and display-related workflows up to 100m / 328ft through a single CAT6a F/FTP cable.

Dual USB-C Host Switching

Two selectable USB-C host inputs support automatic switching, manual front-button switching and API command switching.

Dual HDMI 4K60 DisplayLink Output

Built-in DisplayLink technology enables two HDMI displays up to 4K@60Hz through the USB-C host connection.

Extended or Mirrored Desktop

Use two independent displays for productivity, or duplicate the same desktop on both HDMI outputs from the computer display settings.

RS-232, FSYNC & 24V PoC

Professional pass-through control, GPIO synchronization and bi-directional 24V PoC simplify AV/IT and industrial installations.

UK3000_W product front and rear dimensional view

DisplayLink driver note: To enable two independent 4K HDMI displays, the connected computer must install the latest DisplayLink driver from the official Synaptics website. Mirrored display mode can be selected directly in Windows or macOS display settings.

04

Technical Specifications

Specification	UK3000_W
Product Type	USB 3.2 Gen 1 Extender Set, 100m over CAT6a, with dual USB-C host input and dual HDMI video output
System Units	Transmitter + Receiver
USB Protocol	USB 3.2 Gen 1, backward compatible with USB 2.0 and USB 1.1
USB Transmission Rate	Up to 5Gbps
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
HDMI Video Bandwidth	18Gbps
HDMI Video Resolution	Up to 4K@60Hz
Color Depth / Space	8 / 10 / 12-bit; RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
Transmission Distance	100m / 328ft via CAT6a F/FTP cable; 1.5m / 4.9ft via USB cable; 3m / 9.8ft via passive HDMI cable
ESD Protection	IEC 61000-4-2: ±8kV air-gap discharge and ±4kV contact discharge
Transmitter Input	2 × USB-C HOST (USB Type-C, 24-pin female)
Transmitter Output	2 × USB-A DEVICE, 1 × USB-C DEVICE, 1 × HDBT-USB3 RJ45 with 24V PoC
Transmitter Control	1 × RS-232, 1 × FSYNC, 1 × USB-C SERVICE firmware update port
Receiver Input	1 × HDBT-USB3 RJ45 with 24V PoC
Receiver Output	2 × USB-A DEVICE, 1 × USB-C DEVICE, 2 × HDMI OUT, 1 × AUDIO OUT
Receiver Control	1 × RS-232, 1 × FSYNC, 1 × USB-C SERVICE firmware update port
Audio Output	Balanced analog output up to 2Vrms; unbalanced analog output up to 1Vrms
Housing / Color	Metal enclosure / black
Dimensions	Transmitter: 140 × 75 × 23mm; Receiver: 180 × 95 × 23mm
Weight	Transmitter: 324g; Receiver: 486g
Power Supply	Input: AC 100–240V 50/60Hz; Output: DC 24V / 3.75A
Power Consumption	Transmitter: 18.48W max; Receiver: 19.44W max
Environment	Operating: 0°C to 40°C; Storage: -20°C to 60°C; RH non-condensing

05

Applications & System Layout

Application	Recommended Use
Meeting Rooms & BYOD	Connect a USB-C laptop to remote USB devices and two HDMI displays for flexible meeting, presentation and collaboration workflows.
USB Camera Extension	Extend USB cameras, PTZ cameras, microphones and conferencing peripherals across large rooms and equipment racks.
Classrooms & Training Rooms	Use dual-display output for instructor screens, interactive displays and teaching content over simplified CAT6a infrastructure.
Industrial Vision	FSYNC pass-through supports timing synchronization for industrial cameras and machine vision applications.
Control Desks	Enable remote USB peripherals and two independent HDMI displays for operator workstations and technical control spaces.
Medical & Imaging Rooms	Support long-distance USB and dual-display extension for clean, flexible and serviceable medical AV installations.

UK3000_W System Layout

USB-C Host 1

USB-C Host 2

TX Unit

CAT6a 100m

RX Unit

TV 1 HDMI 4K60

TV 2 HDMI 4K60

USB Devices

DisplayLink

RS-232

FSYNC GPIO

24V PoC

The diagram is for functional reference. Independent dual-screen output requires the latest DisplayLink driver installed on the connected Windows or macOS computer.

06

Package Contents

Standard Package and Project Delivery Items

1UK3000_W USB 3.2 Gen 1 Extender Transmitter

1UK3000_W USB 3.2 Gen 1 Extender Receiver

124V / 3.75A Locking Power Supply

24-pin 3.5mm Phoenix Connector (Male)

15-pin 3.5mm Phoenix Connector (Male)

4Mounting Ear

8Machine Screw KM3×4

1User Manual

07

Contact Information

For full specifications, DisplayLink driver guidance, dual-display workflow planning, USB device compatibility review, CAT6a cabling guidance, industrial camera synchronization planning or AV/IT project support, please contact the PANIO sales and technical team.
