HD6400K
Experience unparalleled video and audio quality with the 8K HDMI™ over HDBaseT Extender. Lossless transmission up to 150m.
Learn MoreKey Features
8K & 4K UHD Support
Handles video bandwidth up to 40Gbps (FRL) and 18Gbps (TMDS) for ultra-high-definition signal transmission without a hitch.
Extended Transmission Range
Extend your reach up to 150m for 1080p, 120m for 4K@60Hz, and 90m for 8K@30Hz without any signal degradation.
HDR & Dolby Vision
Enjoy a full range of HDR formats, including HDR10, HDR10+, Dolby Vision, and HLG for vivid, true-to-life color reproduction.
Immersive Audio
Compatible with premium audio formats like Dolby Atmos, DTS-HD Master Audio, and LPCM 7.1 to enhance your home theater and gaming experiences.
Bi-Directional Control
Simplify remote management with bi-directional control via IR, RS-232, and CEC, putting you in complete control of your connected devices.
Power Over Cable (PoC)
A single power supply is all you need. PoC powers both the transmitter and receiver, reducing cable clutter and simplifying installation.
Technical Specifications
| Category | Details |
|---|---|
| Compliance | HDMI 2.1, HDCP 2.3 |
| Video Resolution | Up to 8K@30Hz (4:4:4), 4K@120Hz (4:4:4), 1080p@60Hz |
| Color Depth | 8/10/12-bit; RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| Audio Formats | LPCM 2.0/5.1/7.1, Dolby Atmos, DTS:X, Dolby TrueHD |
| Control Interface | Bi-directional IR, RS-232, CEC |
| Power Supply | DC 24V/1A (with PoC support) |
| Operating Temperature | 0℃~40℃ |
| Dimensions | 140 × 65 × 18 mm (per unit) |
| Weight | 240g (per unit) |

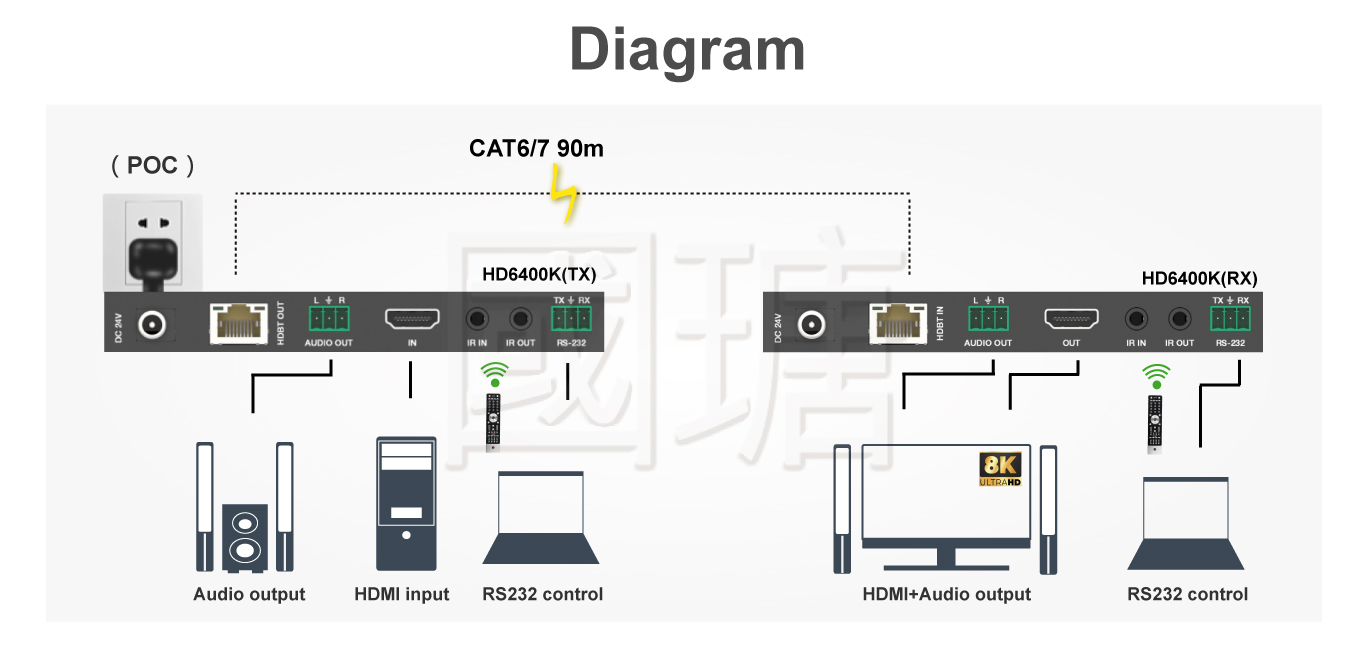

Connection Diagram
Package Contents
- 1 × HD6400K Transmitter (TX)
- 1 × HD6400K Receiver (RX)
- 1 x IR Blaster Cable (length: 1.5m)
- 1 x IR Receiver Cable (length: 1.5m)
- 5 x Phoenix-style connectors
- 1 × 24V/1A DC Power Supply
- 4 x Mounting Ears + Matching Screws
- 1 x User Manual
